Profile
Innovator Mr. Baskaran K. hails from Chidambarnar district of Tamil Nadu.

Purpose
Mr. Baskaran has developed the winding device which can be operated manually.

Technical details

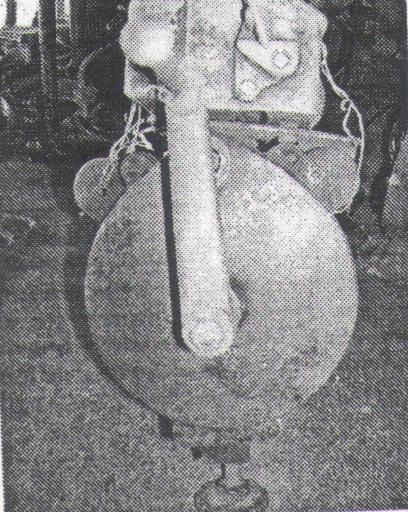

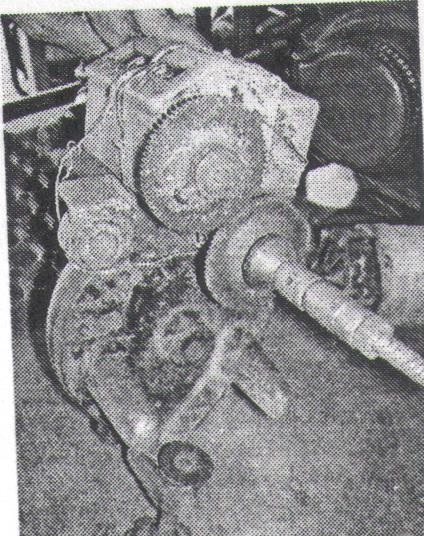

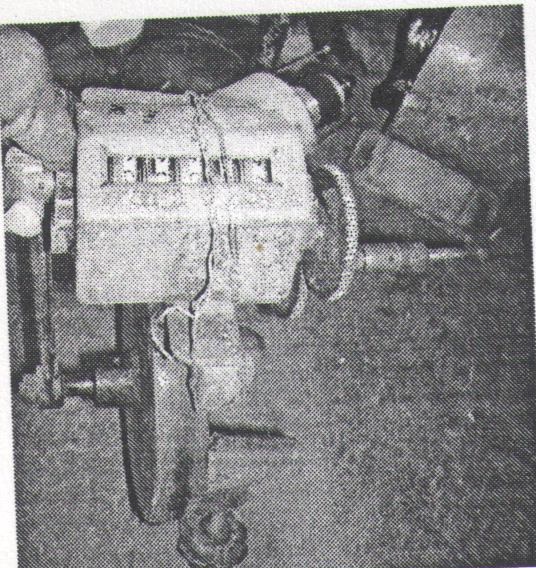

It consists flywheel with handle and connected to bobbins with suitable spur gear arrangement for the required speed. While the square or round shape winding can be easily done.

Performance
Mr. Baskaran claims that  winding speed is 1:10 and normally it takes 3 minutes to wind one coil (900-1015 turn per coil).

Benefits
By using this device the winding becomes easy and uniformity is maintained
