Innovation Detail

Innovation Description

Profile
Innovator Mr. S Sagayaraj hails from Thanjavur district of Tamil Nadu.  He has  studied up to 9th standard. Due to his father's death and poor economic background, he started working as daily wages and step by step he became a civil contractor.

Purpose
Mr. S Sagayaraj has developed a mini tractor for light-duty ploughing operations.

Technical details

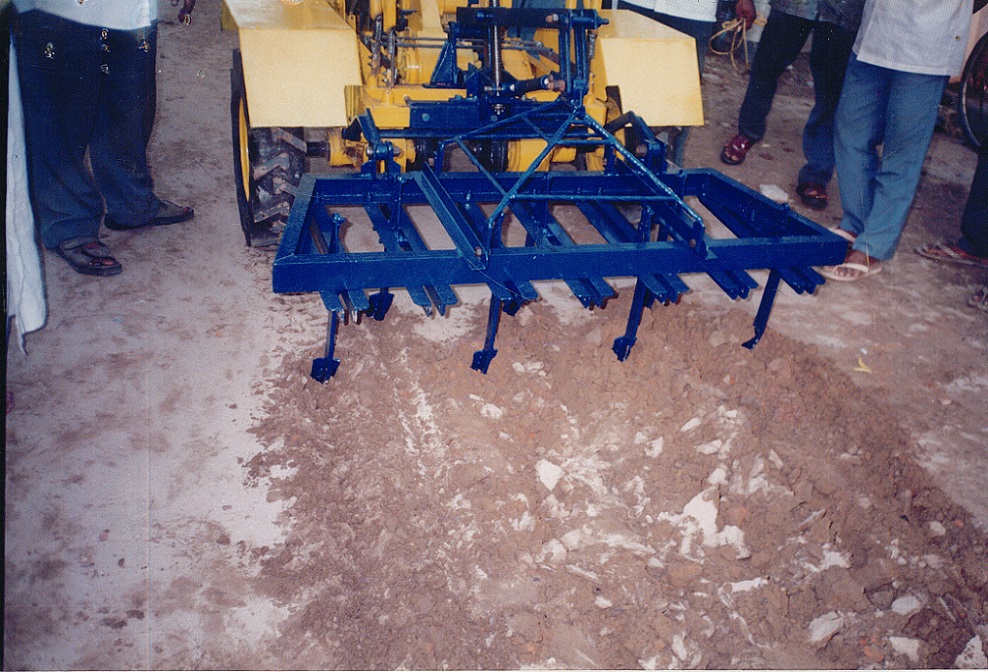

It is a lightweight 6 hp (Lombardini) three-wheel tractor for shallow ploughing in farmlands. A belt drive is engaged to transfer the power from the engine to gearbox and again a chain and sprocket power transmission are used to transmit the power from the gearbox to ideal gearbox which transmits the power to the crown wheel with the help of chain drive transmission. The crown wheel supplies the final power transmission to the rear wheel individually through chain and sprocket mechanism. Two independent drum brakes are provided in both rear wheels. Since the power transmission system is through gears and chain drive this tractor can be inclined up to 45-degree angle on travel. A screw jack is provided in the three-point linkage for the adjustment of cultivators in the field and for the depth control. The C wheels are provided in order to reduce fuel consumption.

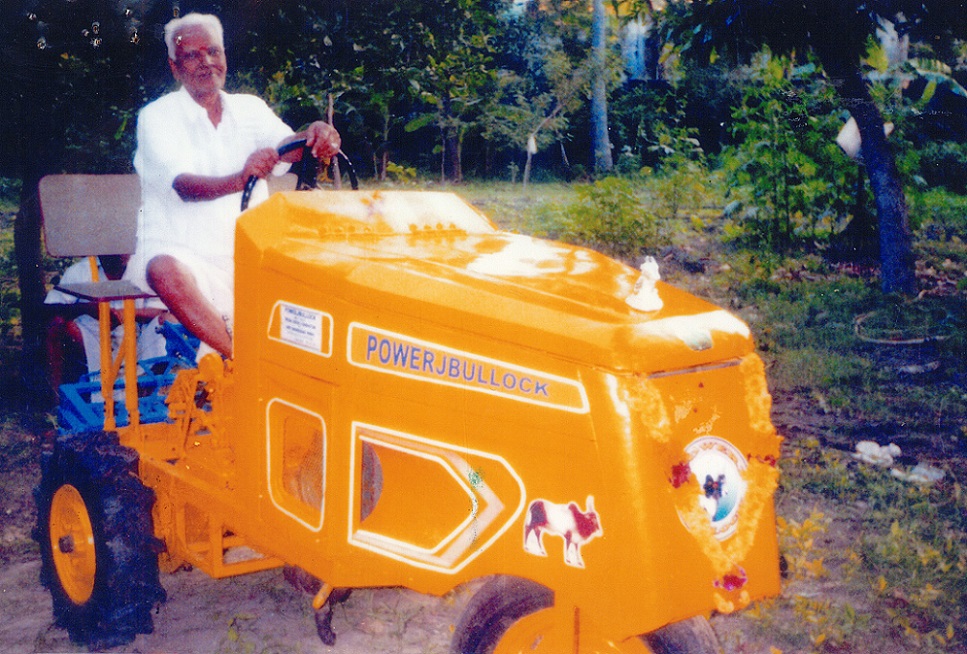

Power Bullock- Mini Tractor LOMBARDINI (hp: 6-7) Specification:
1. Gearbox: Total 5 gears (Forward-4, Reverse-1)
2. Clutch: Foot operation in L.H. side
3. Break: Foot operation in R.H. side
4. Seat: 2 seated
5. Length of Tractor: 2235 mm
6. Width of Tractor: 1425 mm
7. Height of Tractor: 1500 mm
8. Area of Tractor: 2235 X 1425 mm
9. Weight of Tractor: 650 kg
10. Wheel centre to centre: 1560 mm
11. Front-wheel axle berth (Fork): 460 mm
12. Back wheel (Outside size): 1230 mm
13. Frame height: 550 mm
14. Back wheel: Tiller tyre No. 6.00 - 12 - 2 Nos.
15. Front-wheel: Car tyre No. 5.20 - 14 - 1 No.
16. Length of cultivator: 1345 mm
17. Width of cultivator: 585 mm
18. No. of Teeth: 5

Benefits
According to Mr. S Sagayaraj, it is suitable for optimum depth of ploughing i.e. 6-8 inch. The equal weight distribution of tractor and power transmission through the chain and sprockets facilitates the tractor stability even in travelling 45-degree inclination. The power transmission through a chain drive system facilitates high pulling effort without wheel slippage. Since the turning radius will be lesser as compared to the four-wheel tractor, it is more suitable for intercultural operation in row crop cultivation.


Suggested Reading(s):

AICRP on Farm Implements and Machinery, (2017). Intercultural and fertilizer application equipments. Retrieved on February 26, 2021, from https://aicrp.icar.gov.in/fim/salient-achievements/intercultural-and-fertilizer-application-equipments/

Dabhi, K. L., Godhani, R. S., & Swarnkar, R. (2016). Comparative performance of mini tractor drawn tillage implements for seed bed preparation under sandy loam conditions of middle Gujarat. International Journal of Agricultural Engineering, 9(1), 53-61.

Singh, D., Ramteke, R., Vyas, A. K., & Khan, I. R. (2012). Sweep seed drill for intercultural operation along with sowing of soybean (Glycine max) crop. Indian Journal of Agricultural Sciences, 82(2), 158-160.

Vadhiya, N. D., Thaker, N. M., & Bhatt, J. D. (2018). Evolution of mechanization index and used pattern for mini tractor and its equipments in Junagadh district. International Research Journal of Agricultural Economics and Statistics, 9(2), 393-398.
