Innovation Detail

Innovation Description

Profile
The innovator works as an independent mechanic for home appliances such as washing machines, coolers, air conditioners, fans, etc. He is a serial innovator and always thinking about the problem and their solution.
Purpose
To attach a water tank level indicator in common tap.
Technical Description

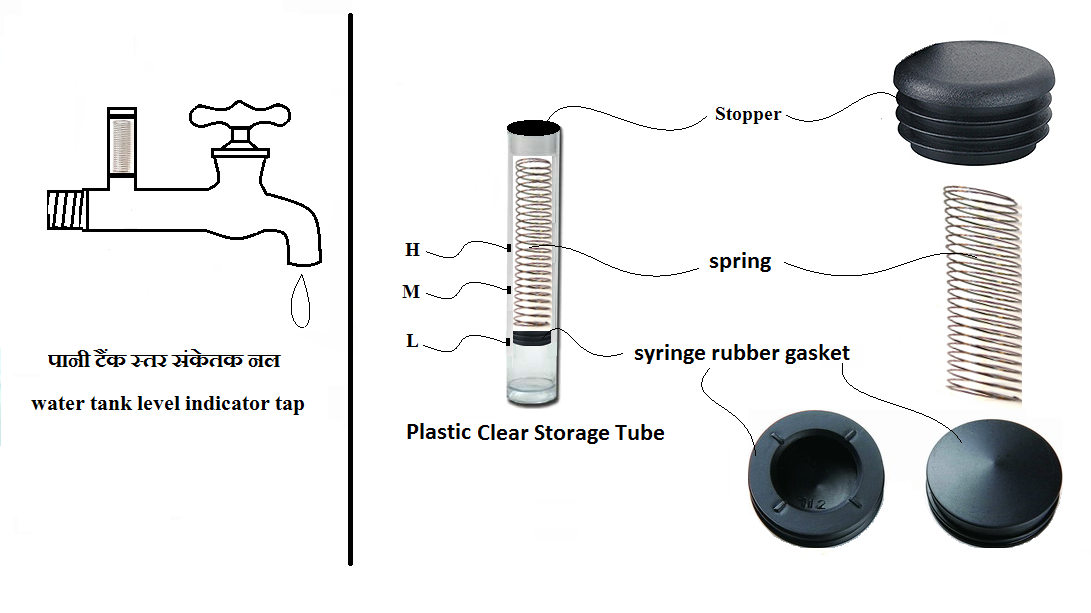

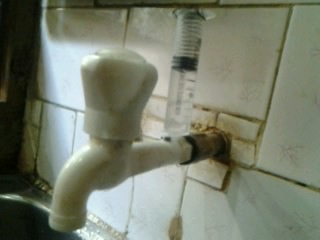

Innovator uses tap with a transparent pipe. He insert rubber ring inside transparent pipe,one spring is attached on top of a rubber ring. Because of spring, ring remains fixed at a particular location depending on the force exerted by tank water on a ring. When the tank is full of water,  the ring reaches some location, Innovator makes a  mark on that location. The same principle is applied when the tank is empty and half.
Benefits
Hence given mechanism very easily indicates the water level of the tank.

Suggested Reading(s):

Momin, M. S. A., Roy, P., Kader, M. M. G., Hasan, M. S., & Islam, S. (2016). Construction of Digital Water Level Indicator and Automatic Pump Controlling System. International Journal of Research, 3(12). 1-5.

Peso, D. (1988). Water level indicator. U.S. Patent No. 4,757,305. Washington, DC: U.S. Patent and Trademark Office.

Roy, D., Roy, A., & Roy, O. (2016). Automatic water level indicator. International Journal of Emerging Trends in Engineering and Development Issue, 6(2), 145 - 148.

YouTube, (2018). Automatic water level tank controller, Overflow water control and pump on of system. Retrieved on July 23, 2021, from https://www.youtube.com/watch?v=8S51XPWNL3U
